Optimizing in-process gRPC with Go 1.23 Iterators and Coroutines

A few years back I have been exploring solutions for the in-process gRPC pattern in Go, for the Thanos project . Recently, a friend and a Thanos maintainer Filip refreshed the initial Thanos solution with the new Go 1.23 iterators .
This created a perfect opportunity to share, in a co-authored blog post, what Filip and I learned about the new iterators, new coroutines
(not goroutines
!) and what options you have for the production in-process gRPC logic. Given our limited time, why not explore all in one blog post, what could go wrong? (:
gRPC in Go
gRPC
is a popular open-source Remote Procedure Call (RPC) framework with a few unique elements like a tight protobuf
integration, HTTP/2 use and a native bi-directional streaming capabilities. Before we move to the advanced in-process
gRPC problem space, let’s define an example gRPC service
that “lists” strings in form a gRPC server stream:
service ListStrings {
rpc List(ListRequest) returns (stream ListResponse) {}
}
message ListRequest {};
message ListResponse {
repeated string strings = 1;
}
With the help of protoc or buf (invoked like this ) and Go and gRPC plugins we can generate Go client and server interfaces (with the corresponding stream interfaces) that looks like this:
Client:
type ListStringsClient interface {
List(ctx context.Context, in *ListRequest, opts ...grpc.CallOption) (grpc.ServerStreamingClient[ListResponse], error)
}
// Server-stream client allows receiving messages.
type ServerStreamingClient[T any] interface {
Recv() (*T, error)
}
Server:
type ListStringsServer interface {
List(*ListRequest, grpc.ServerStreamingServer[ListResponse]) error
}
// Server-stream server allows sending messages.
type ServerStreamingServer[T any] interface {
Send(*T) error
}
With those, a piece of code that needs strings (a “caller”) can list them using the List(ctx, &ListRequest{})
method. This will start a gRPC (HTTP/2) stream that allows receiving strings via the Recv()
method. On the other side, you can implement the server ListStringsServer
interface that sends strings to clients via the Send(msg)
method.

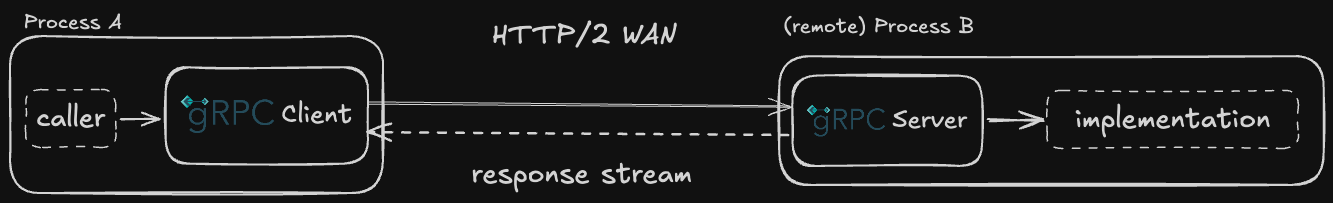

As a result, you can deploy various processes e.g. remotely, so across different machines, that pass data from one to another:
Transparent, in-process gRPC calls
In 2020, Thanos project had 3 years and already was using gRPC heavily for its distributed design (a few microservices). We started to play around with different architectures and abstractions
for efficiency and maintainability. This is when we saw a need for and efficient, yet transparent in-process
gRPC flow. Let’s unpack what we mean and what it helps with using the mentioned ListStrings
gRPC service example.
Imagine you want a service that hides multiple ListStrings
servers and exposes them as a one “proxy” ListStrings
server. This is a common “fan-out” pattern, useful when you want to implement advanced server-side logic like filtering, deduplication, load balancing, data sharding or even request hedging
. You can deploy it as an individual process serving ListStrings
gRPC service that also calls multiple ListStrings
remote servers.
However, we noticed a few use cases for embedding some servers in the same process. For example:
- Embedding the same proxy
ListStrings
server on the client side (e.g. in-memory sharding or client load-balancing). - Embedding some
ListStrings
server on the process with the proxyListStrings
server; making our proxy transparently using the same logic for both remote and local servers. - Testing (avoiding the need of a full HTTP server and client).
Solving this use case (somewhat captured by the #906 issue
) efficiently, proven to be not as trivial as you might think, especially for gRPC calls that are heavy on data (e.g. in Thanos we stream GBs/s of metrics from one service to another). The gRPC framework was designed for the “remote” calls (literally “R” in the gRPC acronym). For example, notice that you can’t simply implement the ListStringsClient
client with the same server code that implements the ListStringsServer
interface. The key difference is actually in the server stream interfaces, so ServerStreamingClient[T any]
vs ServerStreamingServer[T any]
. The former (client) is pulling the messages via the Recv()
. The latter (server) is pushing the messages via the Send(...)
.
At first, it might not be intuitive why that is a problem for an in-process execution. The client is waiting on the data and the server is eventually pushing it. What did we expect, both pulling the data? Well, technically speaking yes, for the sequential execution it would be better if the client would pull and the server would implement the pull interface or the client would implement the push interface and the server would push.
Why? It’s because mixing pulling with pushing for a stream of data requires, either:
- Synchronization and buffering for all the messages, which defies the point of asynchronous streaming. We don’t discuss synchronous behavior in this blog, if you are fine with synchronization you can just stop using gRPC server streaming and not have this in-process problem.
- A medium (shared network, memory or Go channel) and concurrency (like process or goroutine) which incurs some overhead.

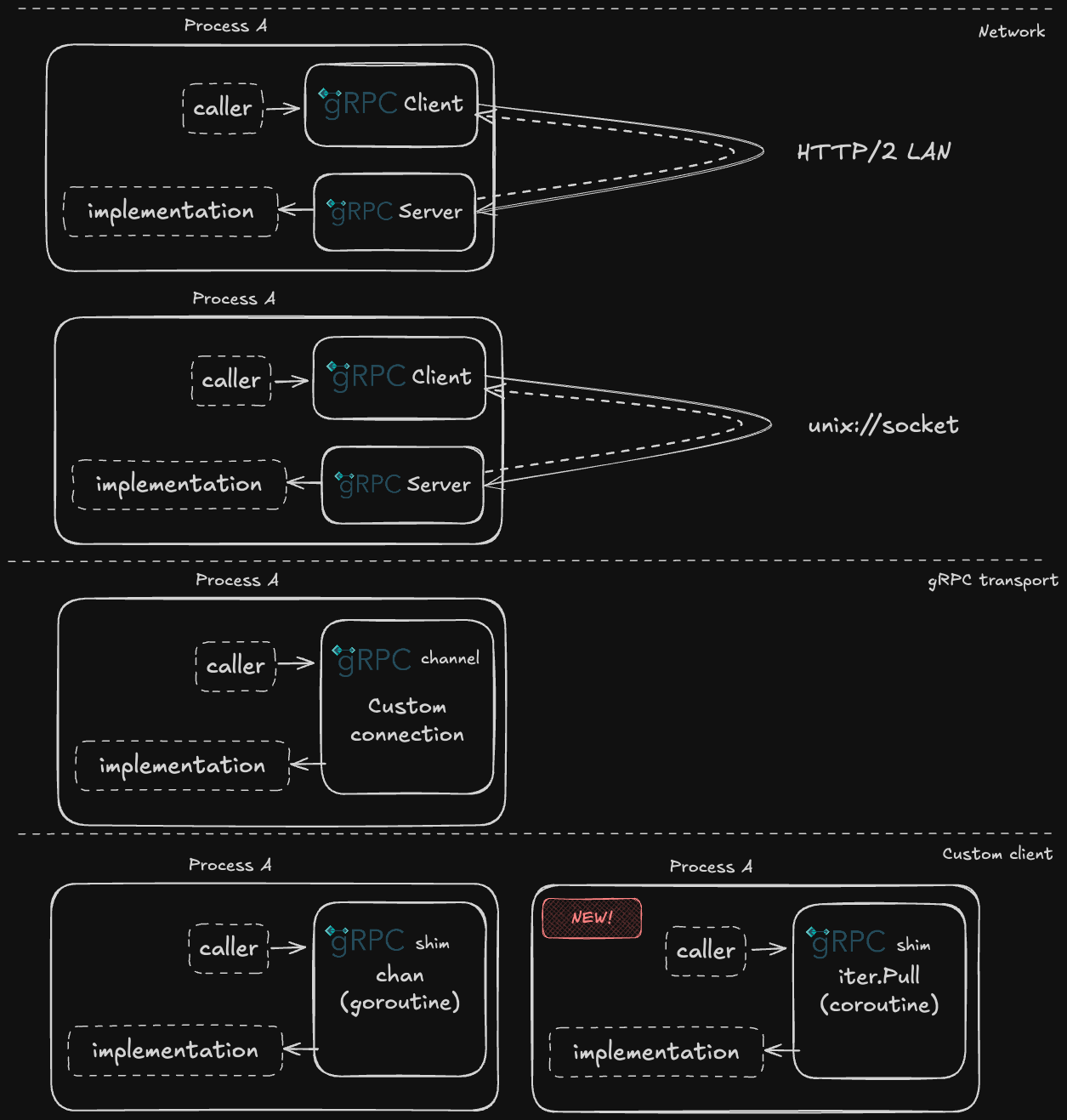

Five Options
Long story short, we have, currently, five practical options:
- A process calling its own gRPC server on the localhost HTTP port.
- A process calling its own gRPC server on the Unix socket.
- Using the brilliant
grpchan/inprocgrpc
gRPC channel implementation. The gRPC channel can be thought of as an abstraction over TCP transport that could be swapped with a custom implementation. - We can implement custom client that uses a single Go channel and another goroutine to integrate
Send(...)
withRecv()
. - Since Go 1.23, we can use an exciting new iter
package to pull (receive) the
Send(...)
calls, which we wanted to explore further in this blog post!
If you can’t wait to learn the pros and cons of each, feel free to fast-forward to the Summary . Otherwise, let’s jump into new iterators and how they help with our in-process gRPC challenge! 💪
Go 1.23 iter
package and coroutines
Filip: The rationale behind introducing coroutines was described in Russ Cox’s blog post Coroutines for Go . The main motivation is enabling developers to write safe and efficient iterators. A key difference with goroutines is that a coroutine introduces concurrency without additional parallelism. In other words, coroutines can’t be preempted by other coroutines. They are designed to only switch (e.g. and resume other coroutine) at the explicit point in the program. Another way I typically summarize it is that goroutines are for working concurrently, coroutines are for waiting concurrently.
It is this particular difference which often unlocks more efficient implementations since there is no need to use synchronization primitives like channels or locks. Scheduling is also cheaper as there’s no preemption. More concretely, Russ reported a 10x improvement in performance when reading values from a coroutine-based iterators vs a goroutine and a channel, or 20ns per read value vs 400ns per read value. In absolute terms, these numbers can seem small, but they can easily accumulate in high throughput environments where servers have to handle thousands of requests per second. Another disadvantage of goroutines and channels is that they create more garbage, thereby adding more pressure on the garbage collector.
Coroutines were added to the Go runtime in 1.23 with the introduction of the iter
package. This package adds two new types, iter.Seq
and iter.Seq2
which can be used to implement iterators returning one and two values respectively. The easiest way to start using iterators is by implementing a function whose definition satisfies one of these two types and using it in a for loop. A simple implementation of the iterator that reads a file line by line can be seen below (also in playground
):
var lineReader iter.Seq2[string, error] = func(yield func(item string, err error) bool) {
f, err := os.Open(filePath)
if err != nil {
yield("", err)
}
defer f.Close()
scanner := bufio.NewScanner(f)
for scanner.Scan() {
if !yield(scanner.Text(), nil) {
}
}
if err := scanner.Err(); err != nil {
yield("", err)
}
}
for line, err := range lineReader {
if err != nil {
// handle err
}
// use line
}
Note that we can open the file in the iterator function, and close it with a defer
statement once we are done reading its contents. This makes the iterator safe to use since the caller does not have to worry about cleaning up resources, the tear down logic is already encapsulated in the iterator implementation.
The easiest way to consume an iterator is by ranging over it in a for loop. There are cases though, when we might need more control over how and when we read values from it. One such case is the gRPC in-process client implementation described above, where we need to implement a pull based API on top of a push based one. The range
keyword automatically does this for us, but we can also get explicit control knobs using the iter.Pull
and iter.Pull2
functions. For example instead of for loop we can use our example lineReader
as follows (playground
):
next, stop := iter.Pull2(lineReader)
defer stop()
for {
line, err, ok := next()
if !ok {
break
}
if err != nil {
// handle err
}
// use line
}
Note that iter.Pull2
returns a stop
function which can be called at any time in order to terminate the iterator. Although consuming iterators this way can be more flexible, it is important to make sure the iterator is either fully exhausted, or stop
is called once the caller is no longer interested in the next value. Otherwise, the iterator function would never terminate, leading to resource leaks.
Implementation with iter
Using these concepts, we rewrote the in-process client implementation
to use a coroutine instead of a goroutine and a channel. The iterator function opens a local server stream which is push based as it relies on the Send
method from the gRPC framework. The client, on the other hand, has a Recv
method, making it pull based. As described above, we could bridge this gap elegantly by using iter.Pull2
, converting a push based to a pull based iterator and handing it off to the client. Our initial implementation had a subtle bug where the client would not call stop
when a query was cancelled. This lead to readers remaining open indefinitely, causing deadlocks in certain situations. It was a great lesson illustrating the drawbacks of consuming iterators outside the happy path, namely by using the range
keyword.
To show the usability of iter
package for in-process gRPC, see the implementation for our example ListStrings
. The newServerAsClient
allows calling ListStrings
server with the client gRPC interface. All with the relatively simple code (also see playground
):
func newServerAsClient(srv ListStringsServer) ListStringsClient {
return &serverAsClient{srv: srv}
}
type serverAsClient struct {
srv ListStringsServer
}
func (c *serverAsClient) List(ctx context.Context, in *ListRequest, _ ...grpc.CallOption) (grpc.ServerStreamingClient[ListResponse], error) {
y := &yielder{ctx: ctx}
// Pull from iter.Seq2[*ListResponse, error].
y.recv, y.stop = iter.Pull2(func(yield func(*ListResponse, error) bool) {
y.send = yield
if err := c.srv.List(in, y); err != nil {
yield(nil, err)
return
}
})
return y, nil
}
type yielder struct {
grpc.ServerStreamingClient[ListResponse]
grpc.ServerStreamingServer[ListResponse]
ctx context.Context
send func(*ListResponse, error) bool
recv func() (*ListResponse, error, bool)
stop func()
}
func (y *yielder) Context() context.Context { return y.ctx }
func (y *yielder) Send(resp *ListResponse) error {
if !y.send(resp, nil) {
return errors.New("iterator stopped receiving")
}
return nil
}
func (y *yielder) Recv() (*ListResponse, error) {
r, err, ok := y.recv()
if err != nil {
y.stop()
return nil, err
}
if !ok {
return nil, io.EOF
}
return r, nil
}
What’s the best option?
With all of this, is iter
the best option for in-process
gRPC use case? It was the best for us for now, but in engineering, there is rarely a single, general best option, so let’s take a look on all five options
and their strengths.
Option | ListStrings |
Pros | Cons |
---|---|---|---|
1. localhost | implementation | Proto definition agnostic, best compatibility (full gRPC logic), simple to use. | Expensive, messages leak out of the process. |
2. unix socket | implementation | Proto definition agnostic, best compatibility (full gRPC logic), a tiny bit less overhead than localhost, simple to use. | Still expensive, messages leak out of the process, not perfectly portable e.g. older versions of Windows. |
3. grpchannel | implementation | Proto definition agnostic, avoids the expensive proto serialization, fully in-process, avoids HTTP serving/client overhead, supports all the timeouts, trailers and metadata that gRPC framework offer, simple to use. | Overhead, especially on default message cloning. |
4. channel + goroutine | implementation | Almost the most efficient. | Hard to make it fully generic, and to support gRPC trailers and metadata, easy to make concurrency mistakes (leak goroutines, deadlocks). |
5. iter + coroutine | implementation | The most efficient, relatively simple implementation. | Hard to make it fully generic, hard to support proper gRPC trailers and metadata. |
To verify the general efficiency of each solution we micro-benchmarked
each ListStrings
implementation by streaming 10k strings (10 MB in total). Results show iter
solutions being the fastest, even with slightly (negligible) more constant allocations than our custom goroutine implementation:
benchstat -col /impl -filter "/respSize:1 /impl:(localhost OR unixsocket OR grpchannel-nocpy OR chan OR iter)" ./bench01-2025.txt
goos: darwin
goarch: arm64
pkg: github.com/bwplotka/benchmarks/benchmarks/local-grpc
cpu: Apple M1 Pro
│ localhost │ unixsocket │ grpchannel-nocpy │ chan │ iter │
│ sec/op │ sec/op vs base │ sec/op vs base │ sec/op vs base │ sec/op vs base │
Local/respSize=1-2 10.333m ± 7% 9.800m ± 31% ~ (p=0.132 n=6) 5.862m ± 5% -43.27% (p=0.002 n=6) 4.500m ± 8% -56.45% (p=0.002 n=6) 2.222m ± 3% -78.50% (p=0.002 n=6)
│ localhost │ unixsocket │ grpchannel-nocpy │ chan │ iter │
│ B/op │ B/op vs base │ B/op vs base │ B/op vs base │ B/op vs base │
Local/respSize=1-2 7479835.0 ± 0% 7055631.0 ± 0% -5.67% (p=0.002 n=6) 482182.5 ± 0% -93.55% (p=0.002 n=6) 320.0 ± 0% -100.00% (p=0.002 n=6) 504.0 ± 0% -99.99% (p=0.002 n=6)
│ localhost │ unixsocket │ grpchannel-nocpy │ chan │ iter │
│ allocs/op │ allocs/op vs base │ allocs/op vs base │ allocs/op vs base │ allocs/op vs base │
Local/respSize=1-2 160279.000 ± 0% 160952.500 ± 0% +0.42% (p=0.002 n=6) 10034.000 ± 0% -93.74% (p=0.002 n=6) 4.000 ± 0% -100.00% (p=0.002 n=6) 15.000 ± 0% -99.99% (p=0.002 n=6)
Summary
To sum up, the grpchan/inprocgrpc
(3)
option is a pretty solid and feature-complete solution that is proto agnostic and supports a majority of gRPC internal mechanisms. To squeeze a bit more performance out of it, you can implement a custom no-op cloner
to avoid expensive copying of your messages – it’s often trivial to implement callers and servers that don’t reuse messages which makes copying not necessary.
However, if your gRPC service is data-sensitive and in the hot path, you can consider implementing an in-process gRPC with the new iter (5)
package which seems to be the most efficient solution as of now. This is why we chose iter
solution for the Thanos project at the moment. The implementation is relatively simple, although more involved than the grpchan/inprocgrpc
.
We hope this post gave you some insights around the iter
Go package and inspire you to build amazing things with it! Feel free to reach us you have questions, feedback and want to share what amazing you build with this knowledge!
Thanks to Maria Letta for the beautiful Gopher illustrations
and Go community for epic iter
package and the related resources (e.g. range-functions post
, Russ Cox’s series of blog posts
)
See ya!
